NRF24L01+ PA and LAN Wireless Module

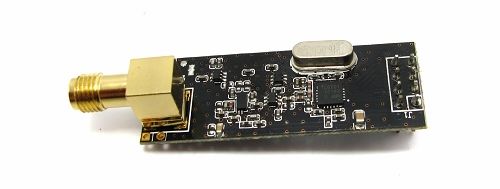

This is a long distacne 2.4G wireless module which basic on nRF24L01+ chip, and there is the PA and LNA circuit on board, with the external antenna it can reach long distance than the one without these parts. It's the same interface as the nRF24L01+ wireless module , so you use thie module to replace it in your project to ger long transmission distance without any change.

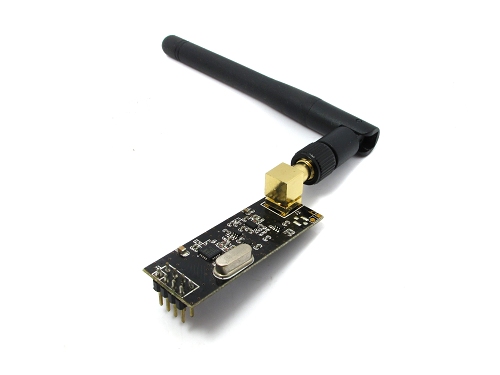

This module comes with the 2.4G antenna (2DB), with 250Kbps transmission rate it can reach up to 800~1000 meters distance.

Parameter

• Voltage: 3-3.6V (recommended 3.3V) V
• Maximum output power: +20dBm
• Emission mode current(peak): 115Ma
• Receive Mode Current(peak): 45Ma
• Power-down mode current: 4.2Ua
• Receiving sensitivity: -92dBm(2Mbps)/-95dBm(1Mbps)/-104dBm(250kbps)
• PA gain: 20Db
• LNA gain: 10Db
• LNA Noise figure: 2.6Db
• Antenna Gain (peak): 2Dbi
• Transmission distance(Open area): 520m (2Mbps)/750m(1Mbps)/1000m (250Kbps)

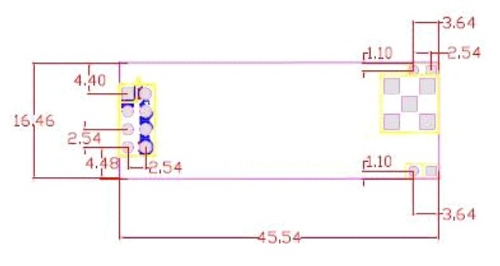

• Size: 45.54mm * 16.46mm

Document

• Example with Arduino
• Library for Arduino(There is another library for Arduino)
• Schematic(PDF)

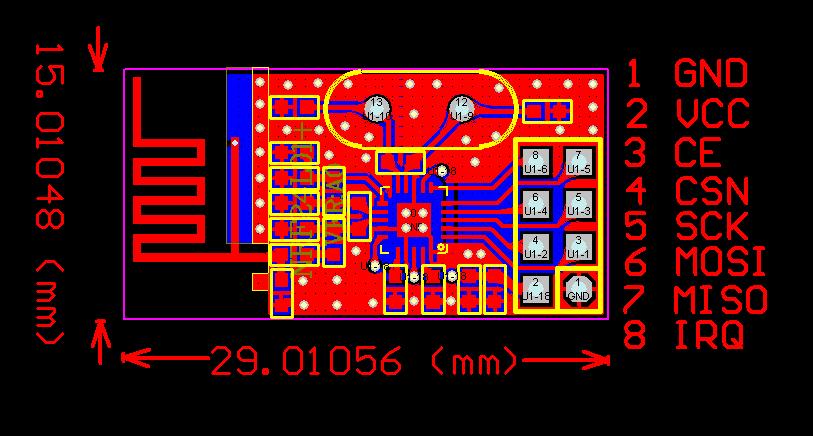

• PCB(JPG)
• Datasheet
