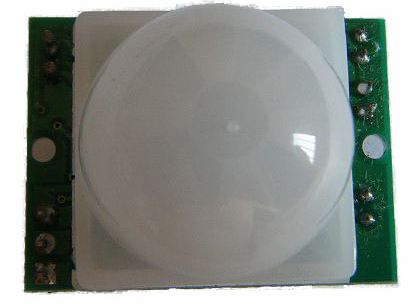

Electrical Parameter
- Working voltage range: dc voltage 4.5-20V
- Static electricity:50uA
- Output level: high 3.3 V/low 0V
- Trigger mode: L unrepeatable trigger/H repeatable
trigger
- Circuit configuration dimensions: 38*28mm(32 * 24 mm)
- Induction angle: 110 degree
- Induction distance: 7 meters
Application scope
- Security products
- Body induction toys
- Body induction lamps
- Industrial automation control etc

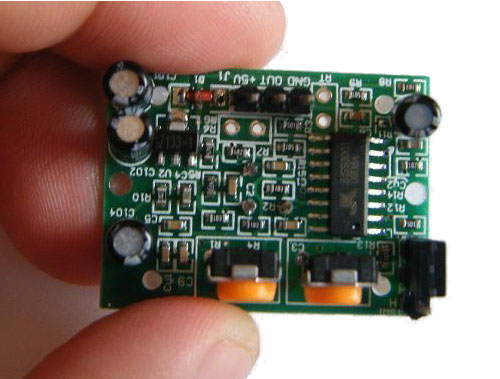

Pyroelectric infrared switch is a passive infrared switch which
consists of BISS0001 ,pyroelectric infrared sensors and a few external
components. It can automatically open all kinds of equipments, inculding
incandescent lamp, fluorescent lamp, intercom, automatic, electric fan, dryer
and automatic washing machine, etc.
It is widely used in enterprises, hotels, stores, and corridor
and other sensitive area for automatical lamplight, lighting and alarm
system.
Instructions
Induction module needs a minute or so to initialize. During
initializing time, it will output 0-3 times. One minute later it comes
into standby.
Keep the surface of the lens from close lighting source and
wind, which will introduce interference.
Induction module has double -probe whose window is rectangle.
The two sub-probe (A and B) is located at the two ends of rectangle. When human
body moves from left to right, or from right to left, Time for IR to reach to
reach the two sub-probes differs.The lager the time diffference is, the more
sensitive this module is. When human body moves face-to probe, or up to down, or
down to up, there is no time difference. So it does not work. So instal the
module in the direction in which most human activities behaves, to guarantee the
induction of human by dual sub-probes. In order to increase the induction
range, this module uses round lens which can induct IR from all direction.
However, induction from right or left is more sensitivity than from up or
down.

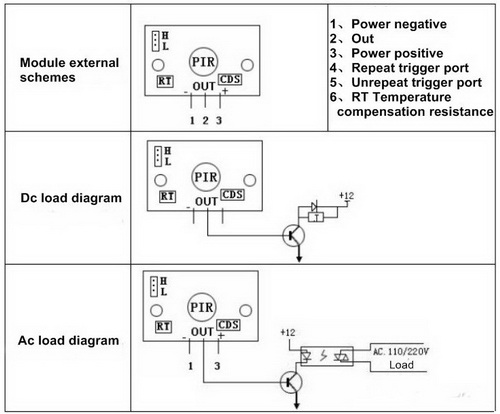

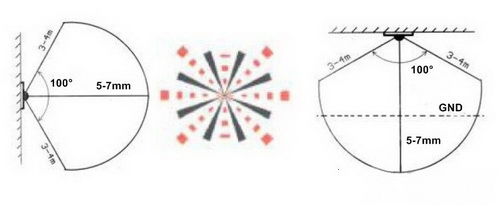

Range
