3.2 inch TFT Screen module with SD slot and Touch control

$29.90  $21.00
Sale: $19.95
Save: 33% off
  • Units in Stock: 0
  • Date Added: Sunday 17 June, 2012
 Sold Out

Product Description:

Description

This 3.2-inch TFT Color LCD Module integrates the Touch Control (XPT2046) and SD card slot. It’s a powerful module for your project.

All the pins, including the LCS's, touch controller's and SD's, are broke out. The LCD is 32044PA. It’s a 65K color, 400*240 (resolution), 3.2 inch Widescreen (16:9) TFT LCD screen. The LCD has a wide viewing angle, the contrast is also very suitable. The Screen controller IC is XPT2046(ADS7343 compatible), supporting 8/16bit data interface, easy to drive by many MCU like STM32,AVR and 8051. The SD slot control SD card via SPI interface.

TFT 3.2" 400*240 With SD Touch Module layout a 40 pins interface for your project, the interface include LCD bus, SD card bus, Touch screen bus and the Flash bus. The flash bus is for external falsh IC such as SST25VF016B. The IC is not contained in this module. If you need it, just buy one and solder it on.

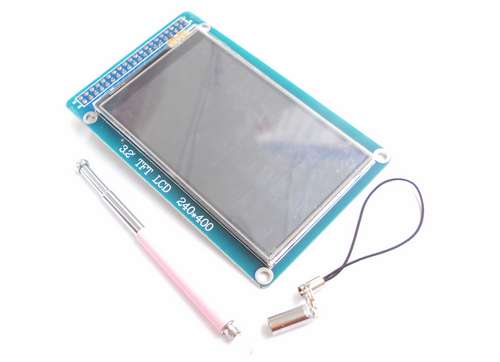

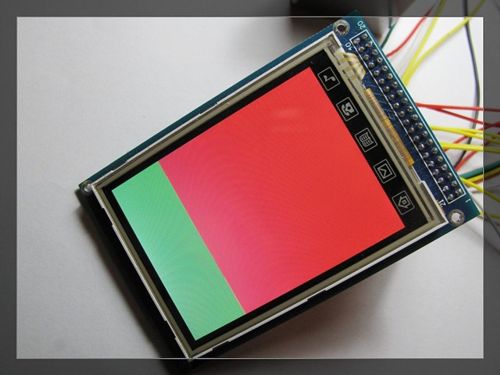

Picture Display

There are two 3mm mounting holes and interface is spacing 2.54mm 2*20 pins.

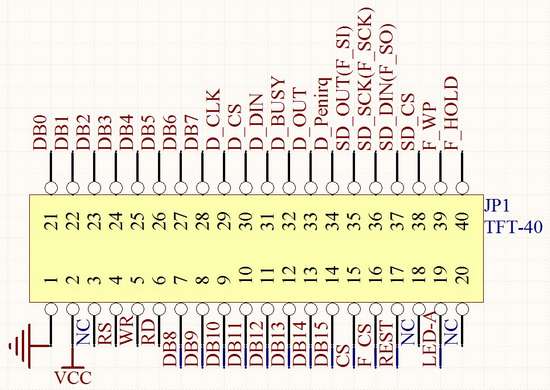

Interface Definition



The pins' name starting with “D_” means the touch bus, “SD_” means SD bus, and “F_” means Flash bus.

Power supply is 3.3v ~ 5V DC. By defaulr, the LCD works at 16 bit mode.

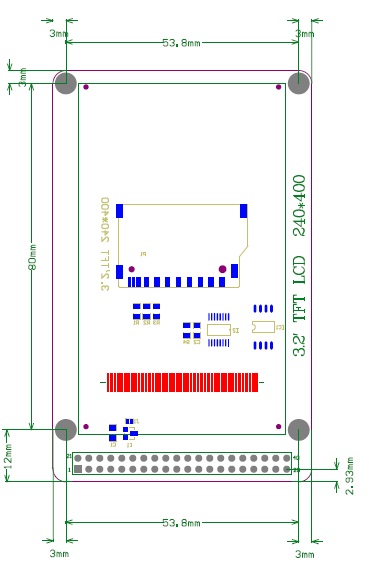

Dimension

Download

Product list

  1. TFT module x1
  2. Touch pen x1
