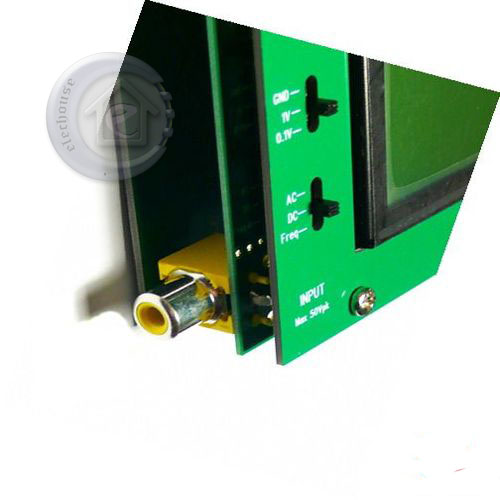

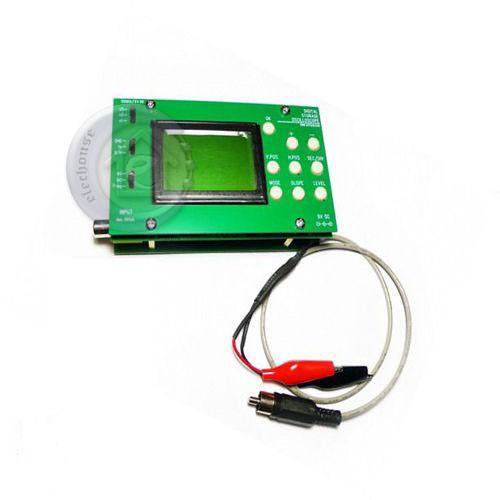

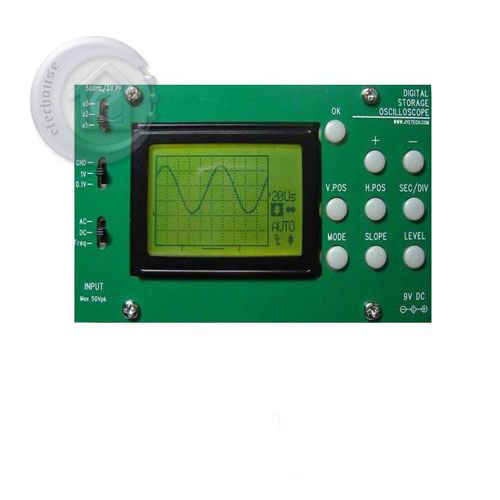

LCD Digital Storage Oscilloscope DIY Kit with Panels

People talked about an oscilloscope for DIYers, that's how we know about JYE tech. Mr Liu is an admirable experienced engineer, being the first generation of university EE student. His seriousness on documents and every detail amazed me. You will find complete document on their website, including demos and assemble guide. We are honored to carry their products, neat and handy for Arduino level electrical development.

• The maximum real-time sampling rate: 5Msps (5Msps only when working in AUTO mode)

• Accuracy: 8Bit

• Sampling buffer depth: 256 bytes

• Analog bandwidth: 0 ~ 1MHz

• Vertical sensitivity: 100mV/Div ~ 5V/Div (progressive way 1-2-5)

• Adjustable vertical displacement, with instructions

• Input impedance: 1MΩ

• The maximum input voltage: 50Vpp

• Coupling mode: DC / AC

• Horizontal time base range: 2μs/Div - 10m (min) / Div (1-2-5 way by progressive)

• Automatic, routine, or single trigger mode to capture instantaneous waveform

• Alternative internal/external trigger source

• Rise or fall edge trigger

• Trigger level is adjustable, with instructions

• Waveform before triggering is available(negative delay)

• Freeze waveform display anytime(HOLD function)

• Build-in 500Hz/5Vpp test signal source

• Up to 6 groups waveforms can be stored after shutdown

• Easy to get the stored waveform

• Can send screen display as a graphic file to PC through the serial port

• frequency meter can detect signal within 5MHz frequency and 100 seconds period

• AC/DC power supply

• Size: 110mm x 65mm x 25mm

• Weight: 115 grams (with power supply mode 185 grams)
