5V Power DC Buck Wire

$6.99
  • Model: DC_BUCK_V5N
  • Units in Stock: 961
  • Date Added: Sunday 15 March, 2015
Add to Cart:

Product Description:

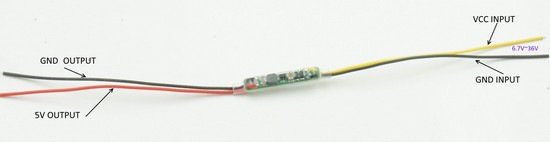

Overview

This mini-buck module is designed based on BUCK topology. Output voltage is stable 5V. It has plastic cover outside, which could prevent dust and moisture. Input side contains a self-recovery fuse PPTC. With the Zener diode, they could protect the module against voltage pulse.

Features

  • Input Voltage 6.7V-36V, output 5V, 500mA.

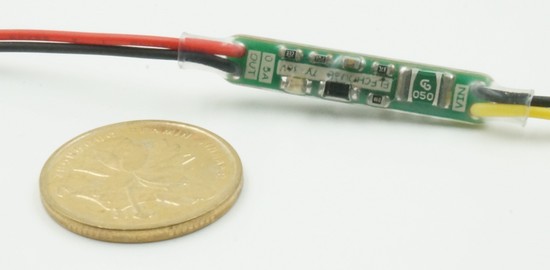

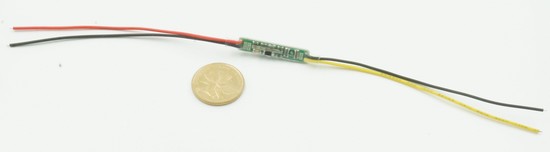

  • Ultra-small dimension, like a wire
  • Wide input voltage range

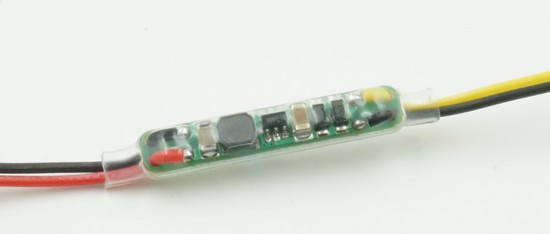

  • Plastic protection against circuit shorting, dust and moisture.
  • Ultra-Low static power self-consumption, as low as 560uA.

Parameter

Parameter

Value

Notification

Input voltage

6.7V ~ 36V



Output Voltage

5VĀ±4%



Max Output Current

500mA

Depends on Input Voltage, See below table

Input Quiescent Current

950uA@6.7V
560uA @ 24V
620uA @ 35V

If remove the LED, the current could become much smaller, almost half of the value

Reverse Input Protection

Yes



Over-voltage Protection

No

If INPUT > 36V, it could bear 2 seconds

Document

Manual

Product List

Buck Wire x 1
