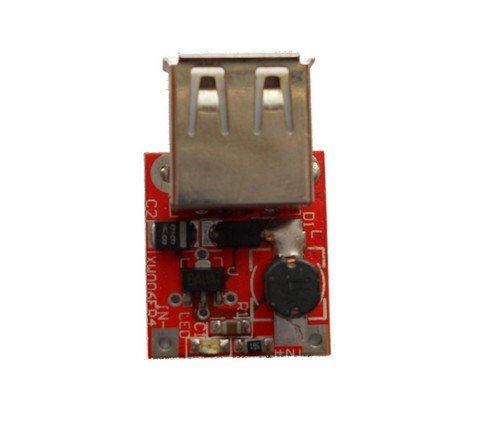

DC-DC Boost module(3V to 5V)

Module parameters

Size:length:22.8mm(31mm if the USB is included);width:18.8mm;height:5mm(8mm if the USB is included)

Input voltage:0.9V-5V

Output voltage:5.0V-5.5V

Output current:rated current:500mA(when input is over 2.8V)

Conversion efficiency:90% in average(the larger the input voltage is,the higher the efficiency is)

Output ripple:50mA(max)

Work temperature:-40 degrees centigrade to 85 degrees centigrade

Full load temperature rise:20 degrees centigrade

Static current:130 uA

Load adjust rate:±1%

Voltage adjust rate:±0.5%

Input method:wielding (IN+:input positive;IN-:input negative)

Output method:standard USB

Little notes

the function of undervoltage indicator:If voltage is large enough,the indicator is on.when the voltage is lower than 2.7V,the indicator is off and you should charge the battery,or it might be damaged.

Applications

• DIY mobile power supply:when you are on business trip or in tourism,you can prepare such a mobile power supply so that you can charge the battery of your mp3 or mobilephone with some other batteries.
• voltage adjusting:when your design needs different voltages,it will be a good choice to use this module.
• make your power supply stable:when your power supply is not stable,you can use this module to make it.
