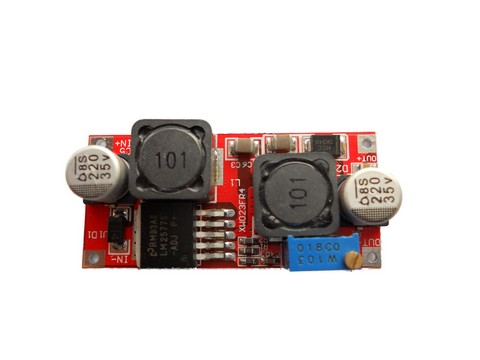

DC Buck-Boost module (3V-35V to 2.2V-30V)

$8.10
Sale: $7.70
Save: 5% off
  • Model: POW_DC-BO-BU_35TO30
  • Units in Stock: 243
  • Date Added: Sunday 08 May, 2011
Add to Cart:

Product Description:

module parameters

Size:length:48mm;width:22.8mm;height:13.5mm(including the potentiometer)

Input voltage:3V to 35V

Input current:2.5A(max)

Input method:IN+:input positive;IN-:input negative

Output voltage:2.2V to 30V(can be adjusted continuously)

Output current:2A(when input 9-35V and output 12V)

Output power:18W when cooled naturely and input voltage is larger than 10V, 24W when heat sink is added

Conversion efficiency:less than 96%

Work temperature:-40 degrees centigrade to 85 degrees centigrade

Full load temperature rise:45 degrees centigrade

Empty load current:typicaly 10mA

Dynamic response speed:5% 200us

Work temperature:-40 degrees centigrade to 85 degrees centigrade

Load adjust rate:±1%

Voltage adjust rate:±0.5%

Short circuit protection:none(please add fuse for the input)

Connection method:wielding

User guide

How to use

First give the right input voltage,and then monitor the output voltage with a multimeter and regulate the potentiometer to change the output voltage until you get the right output.(usually output increase clockwise,decrease counterclockwise)The output voltage can be regulated continously.

Little notes

When temperature outside is over 40 degrees centigrade,please lower using power or strenthen heatsinking.

Aplications

  • mobile power supply:when you are on business trip or in tourism,you can prepare such a mobile power supply so that you can charge the battery of your mp3 or mobilephone with some other batteries.
  • voltage adjusting:when you design needs different voltages,it will be a good choice to use this module.
  • stablize your power supply:when your power supply is not stable,you can use this module to make it.
