Wrobot Downloader/USB-TTL Module

$13.90

Units in Stock: 20
Date Added: Wednesday 04 August, 2010

Add to Cart:

Product Description:

Features

It uses CH341, more stable and reliable than PL2303
On-board coldstart button makes downloading more easily
While with small load, this module can serve as power supply
Suitable to all STC microcontrollers
Can also work as USB-TTL module

Interface introduction

VCC: +5V output
TXD: UART data output
RXD: UART data input
VSS: Controllable Power Negative
GND: GND

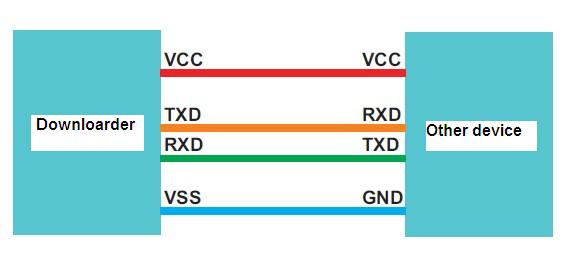

Connection example

If the device has other power supply, VCC connection is not necessary. VSS is controllable power negative. While connecting VSS to GND of the other device, such as MCU, the on-board coldstart button can be used to restart the device. Please note that only while the other device is powered by this downloader, the coldstart button works. If you don't need this button, directly connect GND to GND of the device.

Attention

Click here to downloading the software and driver.
If downloading fails, please lower thr baud rate and try again.
Please follow the order of STC_ISP instruction. Import files firsr, then click download.
Coldstart is not reset. Coldstart is repower the module.
