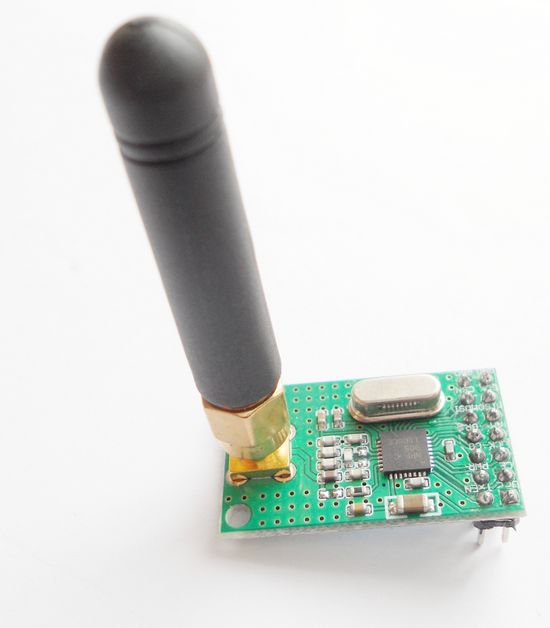

Wireless module -- Arduino compatible, Z-wave frequency

$15.00
  • Units in Stock: 23
  • Date Added: Monday 04 June, 2012
Add to Cart:

Product Description:

Parameter

  • Frequency band: 433/868~915MHz
  • Channel number: 170
  • Function: transmitter / receiver
  • Frequency stabilization method: PLL
  • Modulation mode: the FSK / GMSK
  • Maximum output power: 10dBm
  • Sensitivity:-100dBm
  • Maximum operating rate: 76.8Kbit / s
  • Working voltage: 2.7 - 3 .3 V

Pins



  • VCC ---- Power supply.
  • TXE ---- RF module mode selecting.
  • CE ---- Enable RF module for transmit and receive.
  • PWR ---- Power up chip.
  • CLK ---- Output clock, divided crystal oscillator full swing clock.
  • CD ---- Carrier detect.
  • AM ---- Address matched.
  • DR ---- Receive and transmit ready.
  • MISO ---- SPI master input slave output.
  • MOSI ---- SPI mater output slave input.
  • SCK ---- SPI clock.
  • CSN ---- SPI enable.
  • GND ---- Ground
  • GND ---- Ground

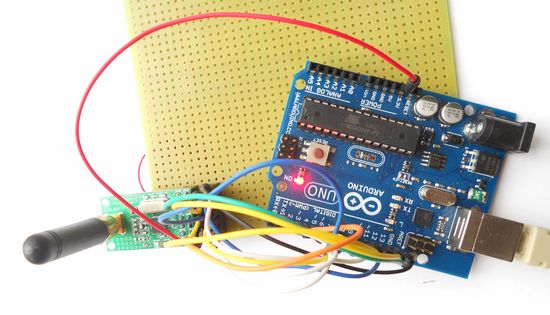

Example with Arduino

please refer to the manual for more information.

Download

Product list

  1. Zwave wireless module x1
  2. 7-1 pin wire x2
Note: this item doesn't work on Z-wave protocol. It works on Z-wave frequency.
