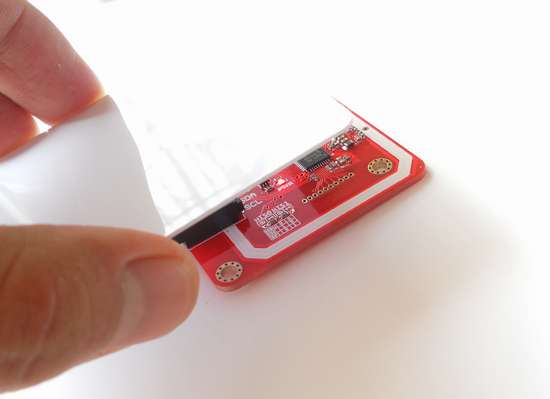

PN532 NFC RFID module kits -- Arduino compatible

Starting at: $22.90
  • Model: WIRELESS-NFC-PN532
  • Units in Stock: 0
  • Date Added: Thursday 25 October, 2012
 Sold Out

Product Description:

This product has been updated to V3. Click here to get the page.

Introduction

NFC is a popular technology in recent years. We often heard this work while smartphone company such as Samsung or HTC introduces their latest high-end phones. Almost all the high-end phone in the market support NFC.

Near field communication (NFC) is a set of standards for smartphones and similar devices to establish radio communication with each other by touching them together or bringing them into close proximity, usually no more than a few centimeters.

For electronics geeks, we also want to use NFC technology to make our own things. So we build this NFC RFID module. This module is built around NXP PN532. NXP PN532 is very popular in NFC area. And the company offers much technology document to help developers.  We developed this module based on the official document. And to make things easier, we also build library for this module.

We almost break out all the IO pins of NXP532 on this module. Users could easily connect and play.  On this module, I2C is the data Interface by default. With our Arduino Sensor Shield V6, it is very easy to plug and play.  However, if users want to use other interface such as UART or SPI, this module also makes it easy to break out those pins.

Feature

  1. Gilt PCB
  2. Work in NFC Mode or RFID reader/writer Mode
  3. RFID reader/writer supports:
    • Mifare 1k, 4k, Ultralight, and DesFire cards
    • ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
    • Innovision Jewel cards such as IRT5001 card
    • FeliCa cards such as RCS_860 and RCS_854
  4. Plug and play, Arduino compatible
  5. Built in PCB Antenna, with 4cm~6cm communication distance
  6. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  7. Work as RFID reader/writer
  8. Work as 1443-A card or a virtual card
  9. Exchange data with other NFC devices such as smartphone

Interface

I2C interface is set as default inteface. However, users could change the interface by

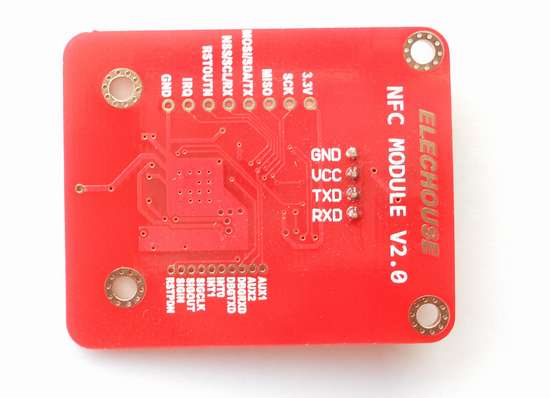

All the useful IO pin are broken out with defination aside.

Hardware connection

If you have Sensor Shield, you could plug in and play

Or you could wire by hand:

Arduino                         PN532 Module
GND       <--------------------->           GND
5V        <--------------------->           VCC
SDA       <--------------------->           SDA
SCL       <--------------------->           SCL

Code and library

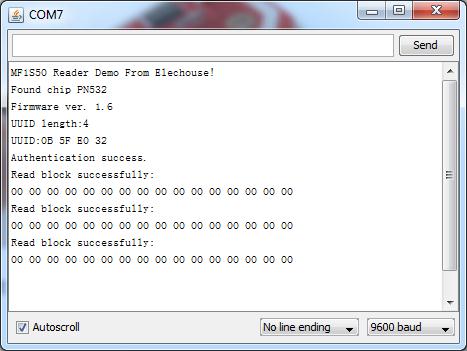

Here we supply code and example to read and write RFID card. Please click here to download the library.

With NFC function, two of PN532 modules could communicate with each other.

Download

Product list

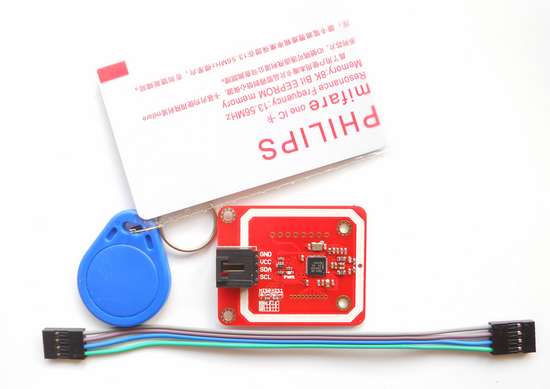

We supply two kinds of kits: User Kits (A) and Development Kits (B)

A. User Kits

Items
Quantity
PN532 NFC RFID Module
1
2.54mm spacing 4pin Cable
1
Mifare One S50 White Card
1
Mifare One S50 Key Card
1

B. Development Kits

Development kits include all the neccessary wires and headers to connect all the pins broken out.

  • PN532 Module x1
  • 2.54mm spacing 4pin Cable x1
  • 2.54mm spacing 1pin Cable x8
  • 1.27mm spacing 10pin female header x1
  • 1.27mm spacing 10pin wire with header x1
  • Mifare One S50 White Card x2
  • Mifare One S50 Key Card x1
Items
Quantity
PN532 NFC RFID Module
1
2.54mm spacing 4pin Cable
1
Mifare One S50 White Card
2
Mifare One S50 Key Card
1
2.54mm spacing 1pin Cable
8
2.54mm spacing 8pin header
1
1.27mm spacing 10pin female header
1
1.27mm spacing 10pin wire with header
1

Please choose the kits blow:

Please Choose:

Qty Discounts Off Price
1
$22.90
1-9
$22.90
10-49
$20.15
50+
$18.32
