ELECHOUSE Proxmark 3 DEV Kits

$399.00  $199.00
Save: 50% off
  • Model: WLE_NFC_PM3
  • Units in Stock: 0
  • Date Added: Friday 01 May, 2015
 Sold Out

Product Description:

This item was replaced by ELECHOUSE Proxmark3 V2 DEV kits

Overview

Proxmark3, originally developed by Jonathan Westhues and release under the terms of GPL.This device can do almost anything involving almost any kind of low ( 125 kHz) or high ( 13.56 MHz) frequency RFID tag. It can act as a reader. It can eavesdrop on a transaction between another reader and a tag. It can analyze the signal received over the air more closely, for example to perform an attack in which we derive information from the tag’s instantaneous power consumption. It can pretend to be a tag itself. It is also capable of some less obviously useful operations that might come in handy for development work.

Still don't understand what it could do? Watch this video Mifare Hack

This Proxmark3 kit from ELECHOUSE includes everything (in fact more than) you need to get started doing RFID/NFC research in style.

Supporting tags

Note: the tale above doesn't include all tags it supports. To learn all the tags in the market (it is impossible for us to test all), click here to download.

Improvement

There are already several types of Proxmark boards in the market. Compared with them, our version did the following improvement:

  1. Smaller Dimension

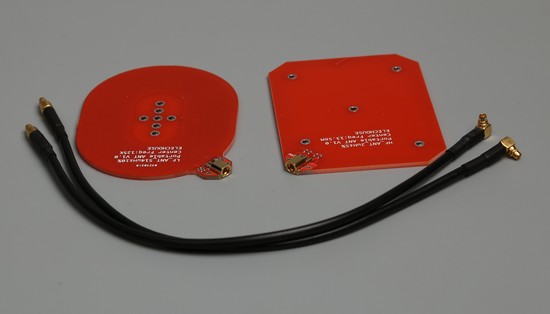

Except the main board, our LF antenna is much smaller with improved performance.

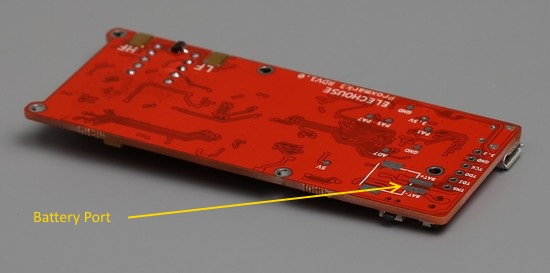

2. Supporting Battery

The following jack is included in the package for this port:

The main board full power management for the battery including charging. The battery could be 3.7V lithium battery such as phone battery.

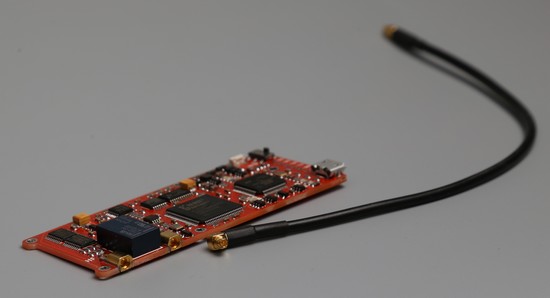

3. Improved the antenna connection

Instead of mini-USB cable, MMCX connector is adopted.

4. Improved the oscillator and power supplying circuit.

Reference

Download Manual (much more information could be found in the manual)

The Proxmark has proven itself to be an invaluable tool within the research community. Here are some examples of how the Proxmark has been used to perform research:

The Proxmark also makes a great educational tool. The entire platform (including hardware and software) is open source and can be readily analyzed and inspected. The Proxmark includes many of the major components found in a general purpose SDR but is simpler and therefore easier to understand. Faculty members should contact us about educational discounts if interested in incorporating the Proxmark into a course of study.

WARNING: The Proxmark3?is a research and development tool. It has not been evaluated for compliance with regulations governing transmission and reception of radio signals. You are responsible for using this product in compliance with your local laws.

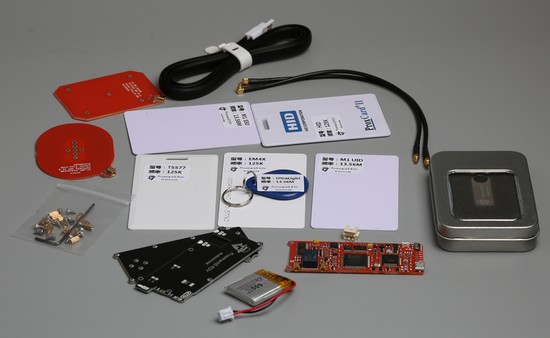

Product List

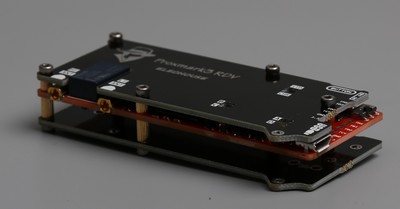

Protection cases assembled.

Items Qty. Note

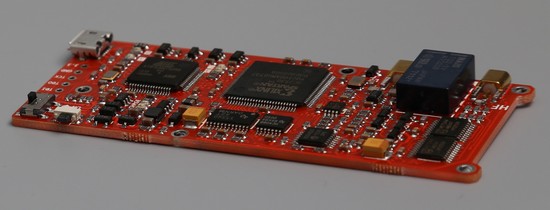

Proxmark 3 main board 1
LF antenna 1
HF antenna 1
MMCX antenna cables 2
Micro-USB cable 1 Connecting Proxmark to PC
Mifare 1 S50 white PVC card 1 13.56Mhz
Mifare Ultralight white PVC card 1 13.56Mhz
Mifare UID white PVC card (Chinese Magic Card) 1 13.56Mhz
HID tag 1 125Khz
T5577 tag 1 125Khz
EM4X tag 1 125Khz
Proxmark PCB protection cases 1 2 boards
Copper pillar and screws package 1 To install the protection cases
HX2.54 Battery connector 1 To soldering on the board if necessary
U-Pen 1 It is a gift. All the document about this module could be downloaded from Internet. However, in caes you may not be able to access Internet, you could store all in this U-pen in advance.

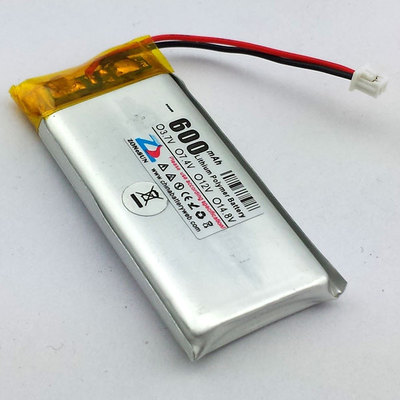

3.7V 600mAh Lithium Battery (Optional) 1 Not contained in the package.

International shipping to some countries could not contain battery.

Buy battery here.
