Wifi RFID Reader (beta)--Mifare classic, Ultralight, Desfire

$99.00  $69.00
Save: 30% off
  • Model: WIL_NFC_WI_089
  • Units in Stock: 0
  • Date Added: Friday 08 January, 2016
 Sold Out

Product Description:

Overview

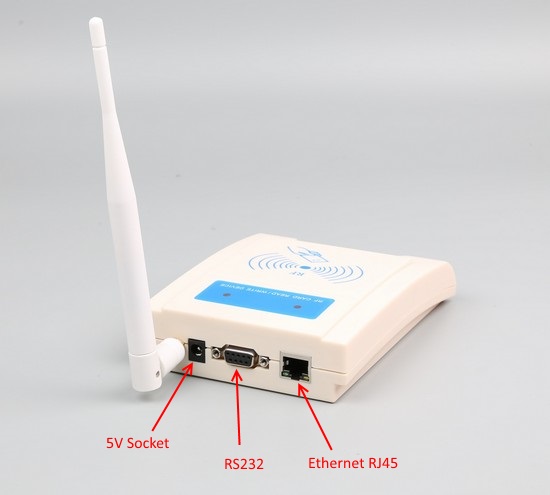

This device could read/write RFID tag through TCP/UDP.So easily we could operate it on PC or Phone wiresslt. It supports wifi/Enthernet.

Specification

  • Length * Width * Height: 142mm * 100mm * 30mm
  • 5V DC Input
  • Reading Distance: 3.5cm~4.5cm
  • Beep sound indication while reading
NFC Parameter
  • Read tag ID on start-up
  • Support various tags

Tags

Reading

Writing

Max Reading Distance

Note

MiFare 1 S50/S70

55mm

PVC card

MiFare Ultralight

66mm

PVC card

MiFare Ultralight C

28mm

PVC card

MiFare DesFire EV1

×

38mm

PVC card, only read tag ID

Connection

  • 2.4GHz 802.11b/g/n,compatible
  • Support IEEE 802.3、IEEE 802.3u

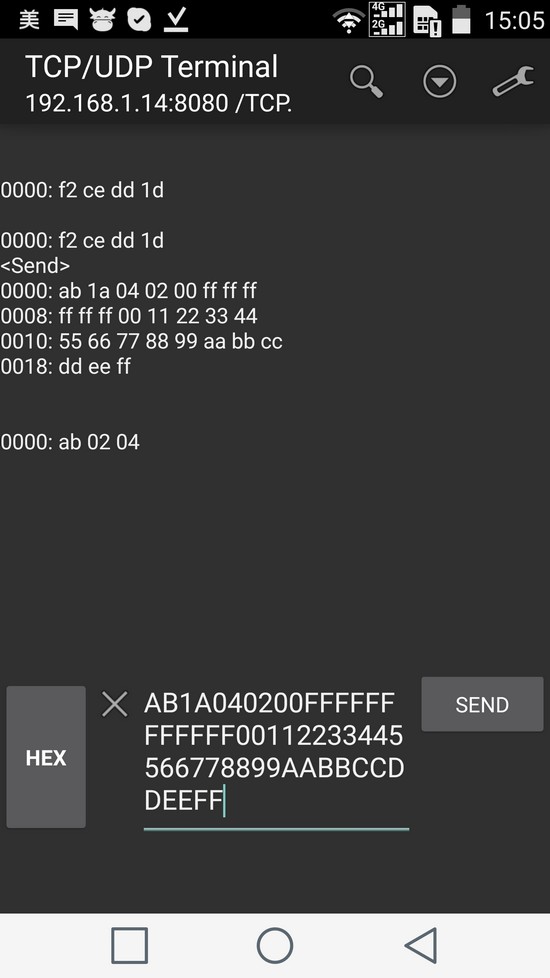

  • Support TCP/UDP
  • Support WiFi Client/AP/Router Mode
  • Support wps/wds
  • Support WEP64/WEP128/ TKIP/ AES WEP/WPA-PSK/WPA2-PSK
  • Support wireless roam
  • Support multiple network protocols: PPPOE/TCP/UDP/DDDNS/DHCP/DNS/HTTP/Firewre
  • Support AT+ instruction set

Download

User Manual

NFC Protocol manual

Testing Tool (Windows)

Reading Software for Windows(coming soon)

Product List

  • WifiNFC Reader x1

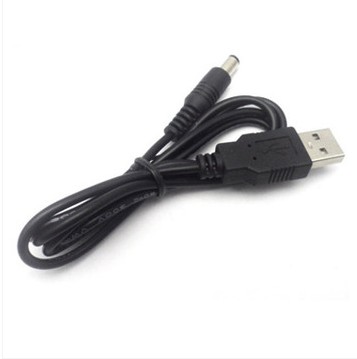

  • USB-DC5.5 power cable x1
