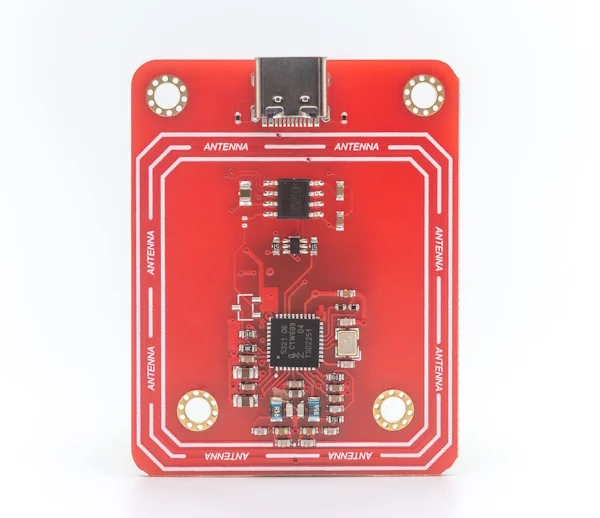

PN532 USB NFC Module Type-C plug and play by ELECHOUSE

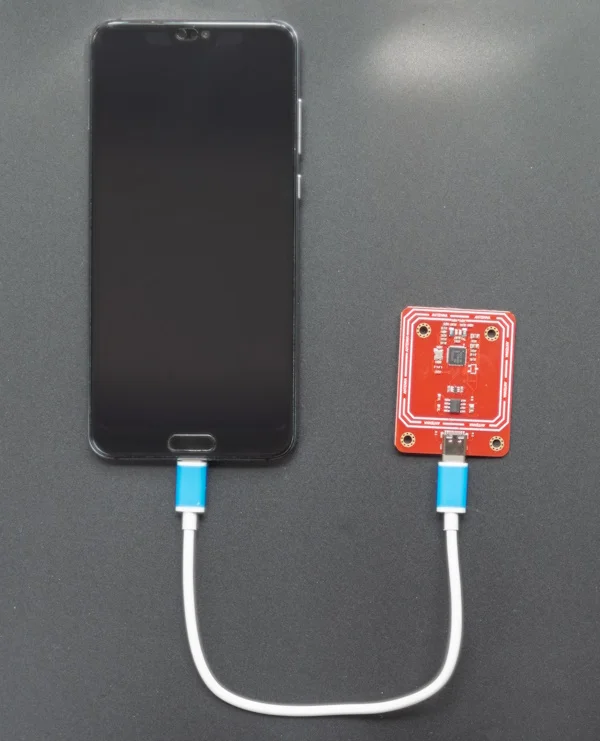

PN532 USB NFC Module Type-C – top view – ELECHOUSE
PN532 USB NFC Module Type-C plug and play by ELECHOUSE

PN532 NFC USB MODULE–Type C

Original price was: $25.60.Current price is: $18.99.

The PN532 USB NFC Module (Type-C) connects to any PC via USB-C for plug-and-play NFC tag reading and writing. No wiring required. Compatible with Windows, Linux, and macOS.

Availability: 648 in stock

Quantity Price
1 - 9 $18.99
10 - 99 $18.00
100+ $17.00
SKU: NFC_PN532_USB Category:

The PN532 NFC USB Module (Type-C) brings NFC functionality to any computer via a standard USB-C connection. No wiring, no breadboard, no drivers to compile — plug it in and start reading and writing NFC tags immediately from Windows, Linux, or macOS.

Who This Module Is For

  • Developers who need NFC on a PC without microcontroller wiring
  • Testers and engineers running NFC protocol verification on a computer
  • Makers building desktop NFC applications or scripts
  • Anyone needing a simple plug-and-play NFC reader for Windows or Linux

Core Advantages

  • USB-C connector — works with modern laptops and computers
  • USB CDC (serial) interface — recognized as a COM/serial port, no custom driver needed
  • Built on the proven NXP PN532 chip — broad protocol and library support
  • Compatible with libnfc, nfcpy, and other NFC software stacks
  • No external power supply required — powered via USB

Key Specifications

Chip NXP PN532
Operating Frequency 13.56 MHz
Host Interface USB-C (CDC / Virtual COM Port)
Power Supply USB (5V, bus-powered)
OS Support Windows, Linux, macOS

Supported Protocols

  • ISO 14443A: MIFARE Classic (1K/4K), Ultralight, DESFire
  • ISO 14443B
  • FeliCa (JIS X 6319-4)
  • ISO 18092 (NFC-IP1 / P2P)
  • Android NFC (NDEF)

Compatible Software

  • libnfc (Linux/macOS/Windows)
  • nfcpy (Python)
  • Any software that communicates via serial/CDC with the PN532 HSU protocol

Typical Use Cases

  • Desktop NFC tag reader/writer
  • NFC card cloning and analysis tools
  • Protocol testing and development
  • Access control credential enrollment on PC
  • NFC-based authentication for desktop applications

Quick Start

  1. Plug the module into your PC via USB-C cable
  2. The module appears as a virtual COM port (Windows: Device Manager → Ports; Linux: /dev/ttyUSB0 or /dev/ttyACM0)
  3. Use libnfc or nfcpy to start scanning tags
  4. On Windows, install a compatible CDC driver if not recognized automatically

Frequently Asked Questions

Does it need a special driver?
On most systems it is recognized as a CDC virtual COM port automatically. Some Windows versions may require a generic CDC driver.
Can I use it with Python?
Yes. Use nfcpy or any Python library that supports PN532 over serial.
Does it work with Android?
It can work with USB OTG-capable Android devices using appropriate NFC software and USB host mode.
What is the reading distance?
Approximately 3–6 cm on standard Mifare cards, depending on tag type and placement.

Compare This Module

Related Documentation and Selection Guides

OEM / Custom Orders

ELECHOUSE provides OEM and ODM services. Learn more or contact us.

RFID & NFC Module Selection Guide

Not sure which module fits your project? See the full comparison with protocol support, interface options, and use case guidance in our RFID & NFC Module Selection Guide.

Linux Setup with libnfc

# Install libnfc
sudo apt-get install libnfc-bin libnfc-dev

# The module appears as /dev/ttyACM0 or /dev/ttyUSB0
# Create or edit /etc/nfc/libnfc.conf:
device.name = "PN532 USB"
device.connstring = "pn532_uart:/dev/ttyACM0:115200"

# Scan for tags
nfc-poll

# Read tag UID
nfc-list

On most Linux distributions, the module is recognized automatically as a USB CDC device. No kernel module compilation needed.

Python Example with nfcpy

import nfc

def on_connect(tag):
    print(f"Tag detected: {tag}")
    print(f"UID: {tag.identifier.hex().upper()}")
    return True

with nfc.ContactlessFrontend("usb") as clf:
    print("Waiting for NFC tag — tap now...")
    clf.connect(rdwr={"on-connect": on_connect})

Install nfcpy with pip install nfcpy. On Linux, you may need to add a udev rule to allow non-root USB access:

# /etc/udev/rules.d/nfcdev.rules
SUBSYSTEM=="usb", ACTION=="add", ATTRS{idVendor}=="04cc", MODE="0666", GROUP="plugdev"

Windows Setup

On Windows 10/11, the module is detected as a USB Serial Device (COM port) automatically. If not:

  1. Open Device Manager → look for “Unknown Device” or “USB Serial Device”
  2. Install the CP210x or CH340 CDC driver if the port is not assigned
  3. Note the COM port number (e.g. COM4)
  4. Use libnfc with connstring pn532_uart:COM4:115200, or use nfcpy with usb:COM4

macOS Setup

# Install libnfc via Homebrew
brew install libnfc

# Module appears as /dev/tty.usbmodemXXXX or /dev/tty.usbserial-XXXX
# Edit /usr/local/etc/nfc/libnfc.conf:
device.connstring = "pn532_uart:/dev/tty.usbmodem101:115200"

nfc-list

Supported Card Types

Card / Tag Standard Read UID Read/Write Data
Mifare Classic 1K / 4K ISO 14443A ✓ ✓ (with auth key)
Mifare Ultralight ISO 14443A ✓ ✓
NTAG213 / 215 / 216 ISO 14443A ✓ ✓ (NDEF)
Mifare DESFire EV1/EV2 ISO 14443A ✓ ✓ (with crypto)
FeliCa (Suica, Octopus) ISO 18092 ✓ Limited
ISO 14443B ISO 14443B ✓ Limited

PN532 USB vs PN532 V4 — Quick Comparison

PN532 USB Type-C PN532 V4
Host connection USB-C (plug into PC) I2C / SPI / UART (wire to MCU)
Best for PC, Mac, Linux desktop Arduino, ESP32, Raspberry Pi
Driver needed No (CDC auto-detected) No (library-based)
Power USB bus power 3.3–5V from host board
Chip NXP PN532 NXP PN532
Protocol support Same Same
Weight 0.03 kg
