Both antenna sizes are included: every standard package ships with one 10 × 25 mm ferrite-backed antenna and one 40 × 50 mm ferrite-backed antenna. Each antenna has an attached 10 cm lead and matching 2-pin MX1.0 plug. No antenna selection is required at checkout; connect and use one antenna at a time.

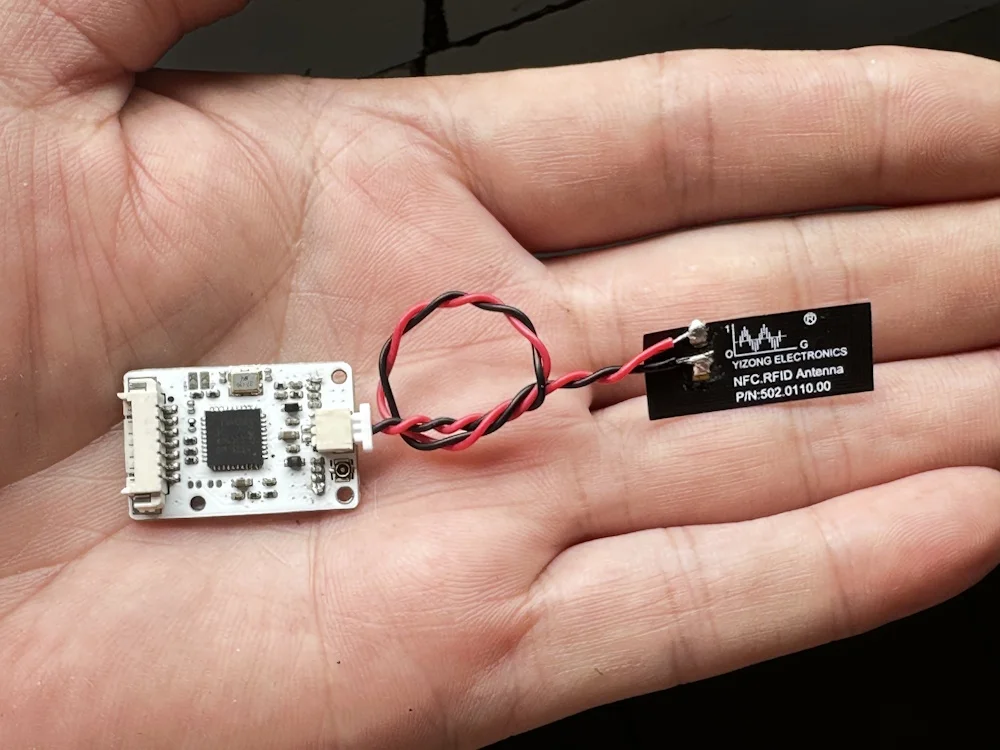

The PN5321 MINI NFC Module is a compact, interference-resistant NFC module from ELECHOUSE, designed for applications where space is limited or standard antennas are inadequate. Its two included ferrite-backed antennas deliver more reliable signals in environments with metal or interference sources.
Who This Module Is For
- Engineers building NFC into compact devices, wearables, or enclosures near metal surfaces
- Developers who need a small NFC module with flexible antenna positioning
- IoT and industrial applications requiring reliable NFC reading in demanding environments
- OEM/ODM customers needing a small-footprint, well-tested NFC solution
Core Advantages

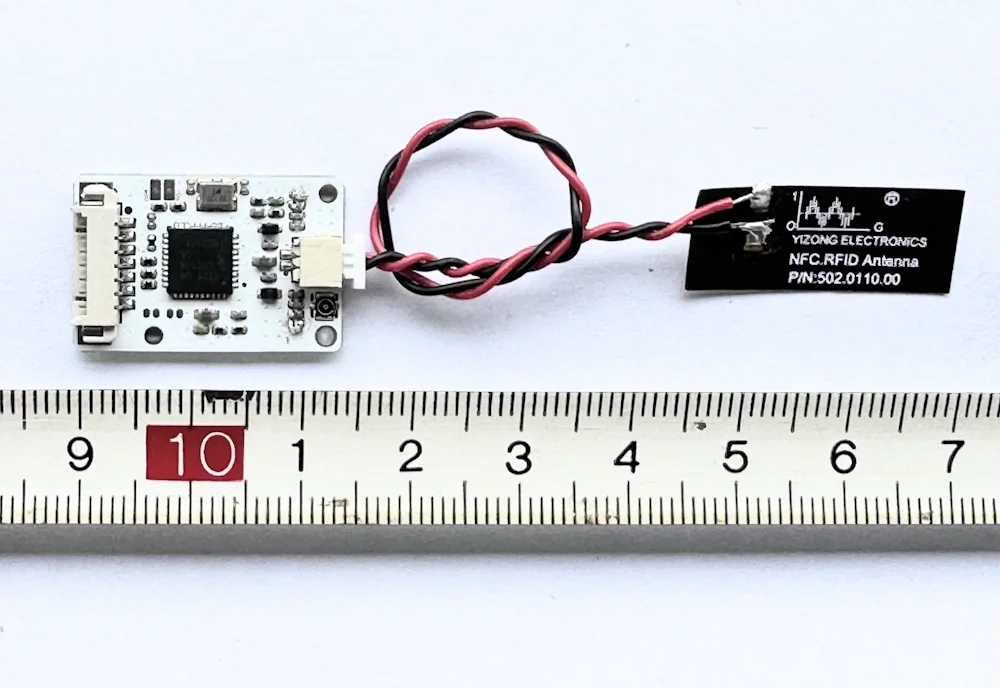

- Compact main board: 25 mm × 16.4 mm — easy to embed in space-constrained designs
- Two ferrite-backed antennas included — choose the size that best fits the installation
- The included wired antennas use the 2-pin MX1.0 RF port; the board also provides an alternative IPEX4 RF connector
- Three interfaces: I2C, SPI, UART — configurable by solder pad
- Wide supply voltage range: 2.7V to 5.5V — compatible with 3.3V and 5V systems
- Broad operating temperature: -25°C to +85°C
Key Specifications
| Chip | NXP PN5321 |
| Operating Frequency | 13.56 MHz |
| Interfaces | I2C, SPI, UART |
| Supply Voltage | 2.7V – 5.5V |
| Interface Voltage | 3.3V |
| Main Board Size | 25mm × 16.4mm × 4.4mm |

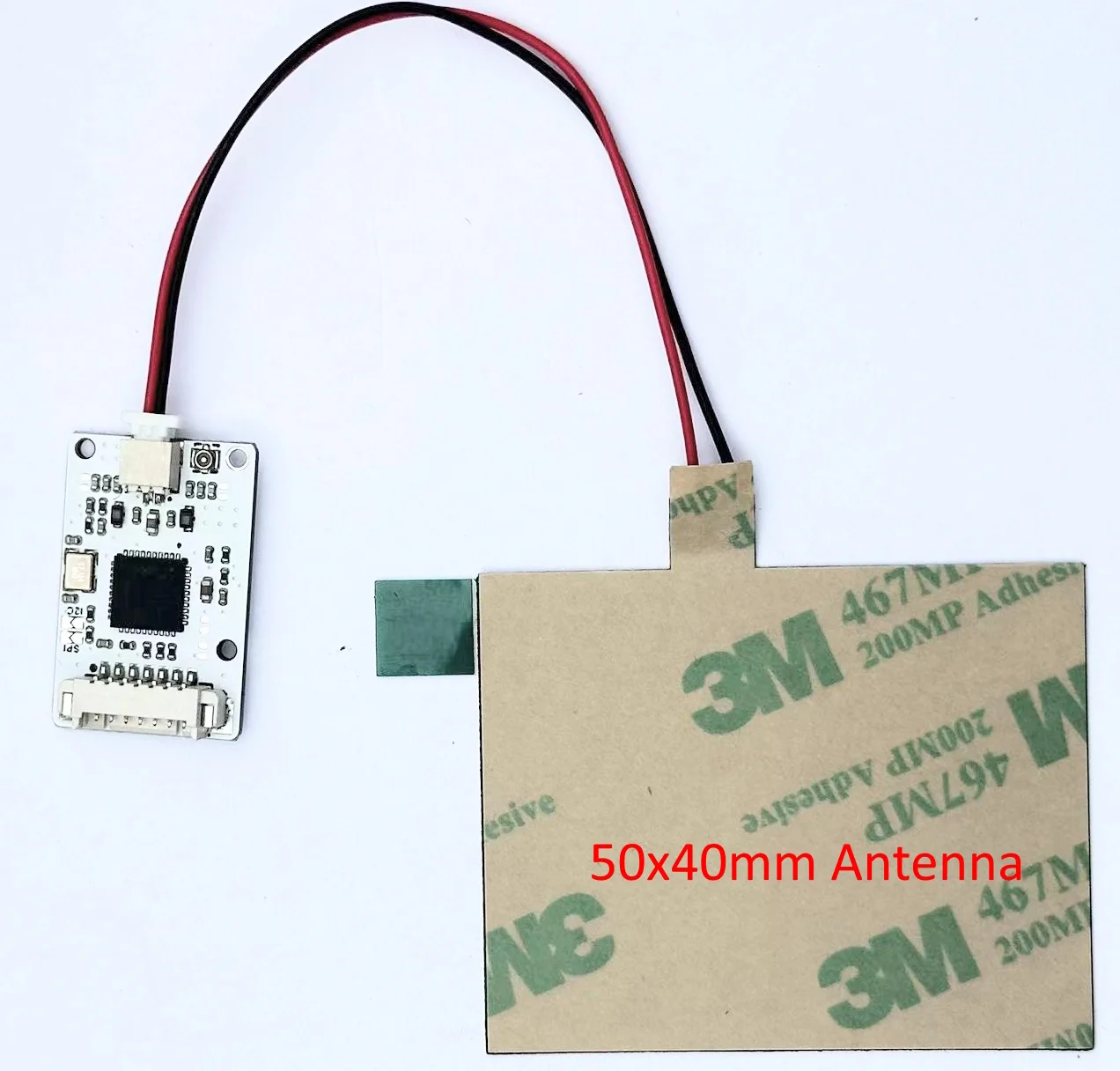

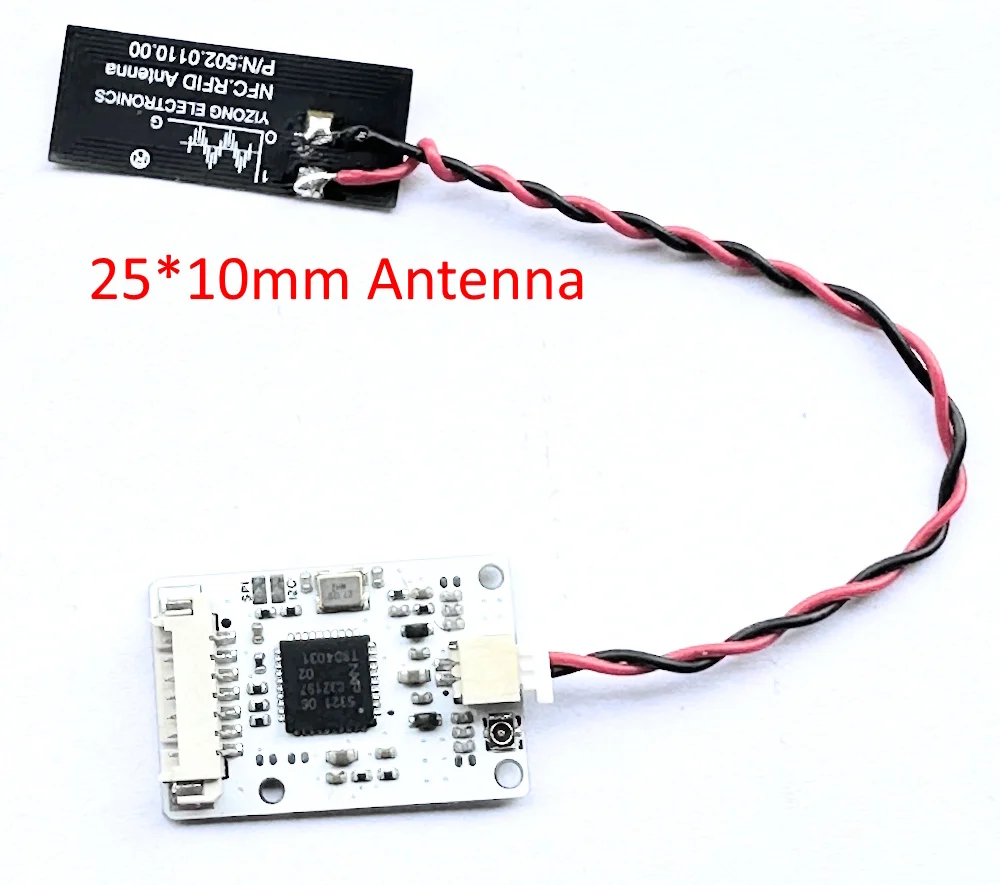

| Included Antennas | 1 × 10mm × 25mm and 1 × 40mm × 50mm, both ferrite-backed |
| Antenna Connectors | 2-pin MX1.0 for the included wired antennas; alternative IPEX4 RF connector |
| Antenna Leads | Each included antenna has an attached 10 cm lead with an MX1.0 plug |
| Operating Temperature | -25°C to +85°C |
| Certifications | CE, RoHS |
Supported Protocols
- ISO 14443A / 14443B
- ISO 15693
- JIS X 6319-4 (FeliCa)
Compatible Platforms
- Arduino (Uno, Mega, Nano, Leonardo)
- ESP32 / ESP8266
- Raspberry Pi (via I2C or SPI)
- Linux (libnfc)
- Any 3.3V or 5V microcontroller with I2C, SPI, or UART
Reading Distance Test Results
Tested with different antenna configurations using ferrite backing:
| Antenna | Square Mifare S50 (85×54mm card) | Round Mifare S50 (25mm coin) |
|---|---|---|
| 40×50mm antenna with ferrite | 5.8 cm | 3.3 cm |
| 10×25mm antenna with ferrite | 3.0 cm | 2.0 cm |
Ferrite backing reduces electromagnetic interference, resulting in clearer signal reception. Watch the antenna comparison video.
Typical Use Cases
- Smart wearables and IoT devices with limited space
- Access control systems in metal enclosures or near metallic surfaces
- Consumer electronics with built-in NFC (point-of-sale, healthcare)
- Industrial equipment requiring reliable NFC in high-interference environments
- Custom product integration (OEM/ODM)
Quick Start
- Select your interface (I2C, SPI, or UART) using the solder pads on the board
- Connect one included antenna to the 2-pin MX1.0 RF port, or use a compatible antenna with the alternative IPEX4 RF connector
- Wire the module to your microcontroller using the selected interface
- Use the ELECHOUSE PN532 library or any PN532-compatible library for Arduino
- Run a basic card-read example to verify communication
For detailed wiring and code examples, see the PN5321 MINI Documentation or the product manual below.
Frequently Asked Questions
- Does the standard package include both antenna sizes?
- Yes. Every standard package includes one 10 × 25 mm ferrite-backed antenna and one 40 × 50 mm ferrite-backed antenna. Both include an attached 10 cm lead and 2-pin MX1.0 plug, so no antenna selection is required at checkout. Connect and use one antenna at a time.
- Why use a ferrite antenna instead of a standard PCB antenna?
- Ferrite reduces interference from nearby metal and improves signal clarity in environments where standard antennas perform poorly. This makes the MINI more reliable in compact or metal-adjacent designs.
- Can I connect both included antennas at the same time?
- No. Connect and use one antenna at a time. The two included antennas plug into the 2-pin MX1.0 RF port; IPEX4 is an alternative RF connector.
- Is this module compatible with the PN532 V4?
- They use different chips (PN5321 vs PN532) but are protocol-compatible at the NFC level. Software libraries written for PN532 typically work with PN5321 as well, though some advanced features may differ.
- What interface voltage does it use?
- The logic interface voltage is 3.3V. If your microcontroller operates at 5V, use a level shifter or confirm 5V tolerance before connecting directly.
- What reading distance should I expect?
- With the 40×50mm antenna and a standard Mifare card, expect around 5–6 cm. Results vary with card type, orientation, and environment.
Compare This Module
Download
Product List

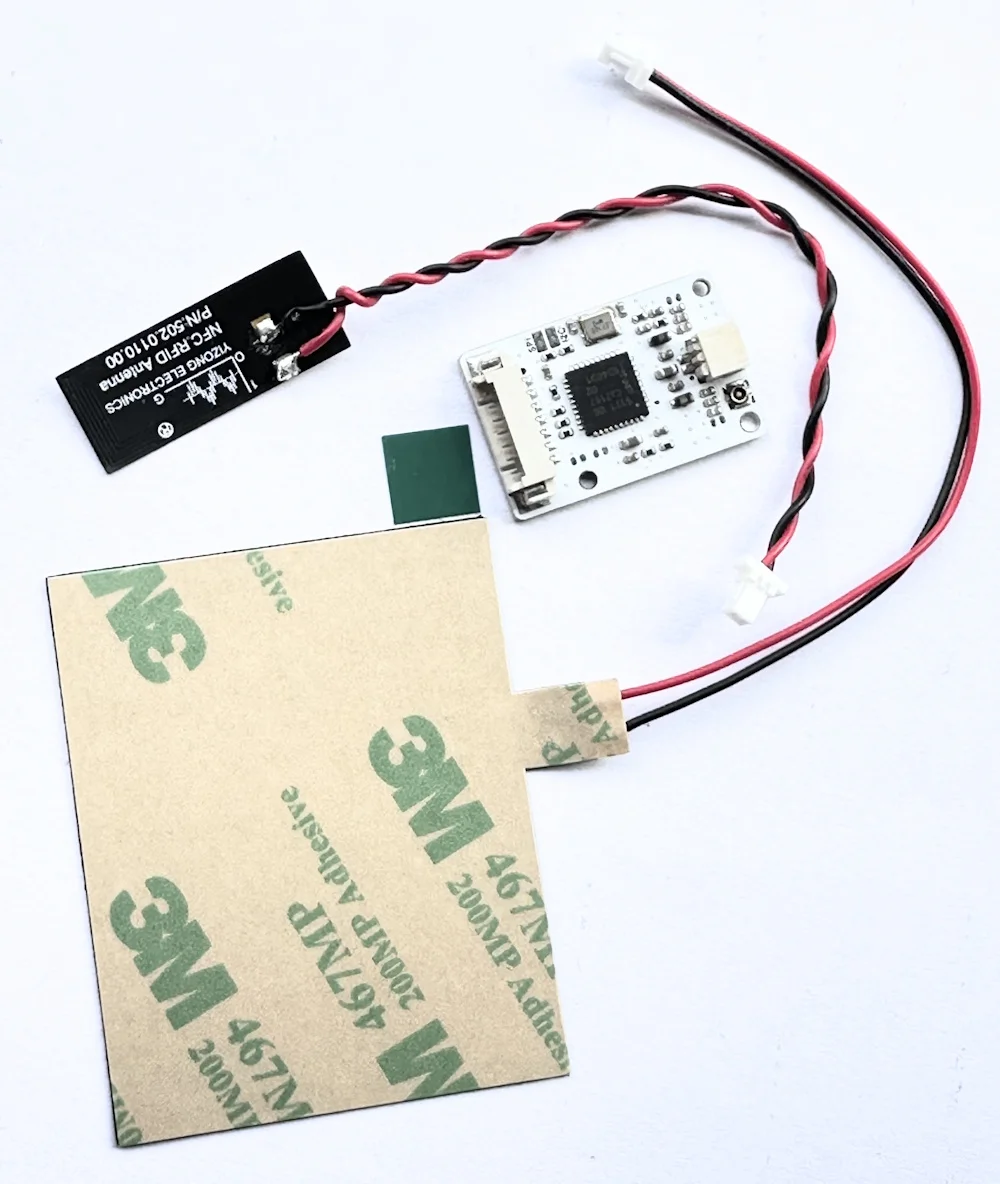

- 1 × PN5321 MINI main board
- 1 × 10 × 25 mm ferrite-backed antenna with attached 10 cm lead and MX1.0 plug
- 1 × 40 × 50 mm ferrite-backed antenna with 3M adhesive, attached 10 cm lead, and MX1.0 plug
Host cable note: the optional 7-pin MX1.25 host-interface cable is sold separately.
